Inclined Powder Worm Screw Conveyor For Auger Conveyor Systems Stainless Steel

Stainless Steel Shaftless Inclined Screw Auger Conveyor For Powder

working principle

Shaftless Screw conveyor is relying on a spiral blade shaft in the trough of closed continuous

rotation in order to impel the lose of material moving. At this time, the material are like the bolt,

in spinning along the axial moving forward gradually, finally discharging mouth off.

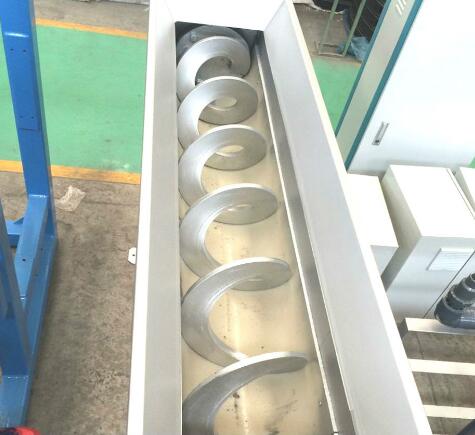

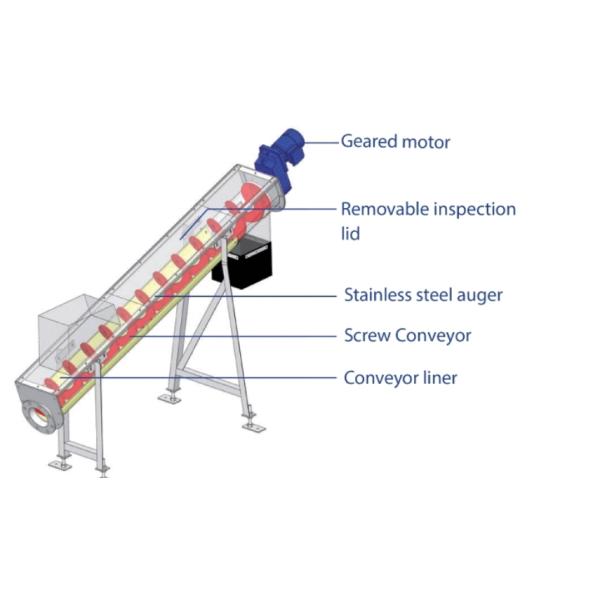

shaftless screw conveyor consisits of drive equipment, shaftless spiral body, U-shaped

groove, inlet and outlet mouth, cover and stand.when the material goes into the U-shaped

groove, the use of friction between the spiral shaft and material can force the material go into

the outlet moth to discharge.

Technical Parameters



Main Features

♦ Ease of installation, stable operation

♦ Automatic controlled, low noise, low leakage

♦ Internal bearings are eliminated, low maintenance

♦ Long service life, low total cost of ownership

♦ Improved conveying efficiency when compared to other types of conveyors

♦ Allows greater flexibility for plant layout due to configurations available

Advantages

1.Fully Automatic Control

2.Combining with the auto control system, the machine runs very safely and simply and can

be programmed according to the requirement of the users. It can operate automatically for 24

hours, unmanned.

3.Low Running Cost

4.Power-use: less than 5% of centrifuge.

5.National standard long life ,low consumption ,low noise .

6.Non-clogging

7.Self-cleaning with small amount of water.
